MASJID DIRAJA SULTAN ALA’EDDIN
BANTING, SELANGOR
CONSERVATION
PROJECT INFORMATION
Location
City / State
Address
GPS Coordinate
Banting, Selangor
Kg. Bandar, Banting, Selangor
Latitude
2.86338
Longitude
101.43987
Details
Client
Consultant / Architect
Date & Duration of Project
Majlis Agama Islam Selangor
Arkitek Punca Cipta Sdn. Bhd.
16th April 2015 –
17th April 2018
Contractor
Conservator
Project Cost
Smart Reliance Sdn. Bhd.
Hj. Kamarudin Md. Said (Conservator Contractor)
9,335,450.00 MYR
PROJECT SYNOPSIS
The Conservation
of
Masjid Diraja Sultan Ala’eddin
Masjid Diraja Sultan Ala’eddin or known as Masjid Bandar was constructed in 1905 and completed in 1914. It was named after the late Sultan Ala’eddin Sulaiman Shah Ibni Almarhum Raja Muda Musa, the 5th Sultan of Selangor (1898 -1939). According to a historical account, the mosque was erected upon initiative and contribution to the construction fund by his Highness Sultan Ala’eddin himself. The mosque was officiated on the 18th June 1924. It was registered under the National Heritage Act 2005 as National Heritage in 2005 by the National Heritage Department.
The mosque's design is much influenced by Mughal architecture, having a central Main Dome with a perimeter of smaller domes with a design adaptation of the onion dome. The walls are topped at all sides by decorative pinnacles and crenels. A series of arch-shaped openings at the perimeter walls encourages good natural ventilation and lighting in the mosque.
The main work scope of the conservation from 2015 until 2018 is to restore Masjid Sultan Ala’eddin to its original form. The works include the demolition and removal of all extension works and added elements that do not according to its original architecture.
CONSERVATION TIMELINE
THE CONDITION MASJID ALA’EDDDIN BEFORE CONSERVATION WORKS IN 2015
INTERIOR OF THE MAIN PRAYER HALL WITH TIMBER FINISHES AT THE WALL AND CEILING
THE EXTENDED PRAYER HALL (RUANG LIMPAH) BEFORE CONSERVATION IN 2015
Before
Conservation
16th April
2015
THE CONDITION MASJID ALA’EDDDIN BEFORE CONSERVATION WORKS IN 2015
THE CALLIGRAPHY MEDALLION FITTED AT THE CEILING OF THE MAIN PRAYER HALL
THE CONDITION OF THE SIDE DOME BEFORE CONSERVATION
INSTALLATION OF A TEMPORARY ROOF ABOVE THE MAIN PRAYER HALL
REMOVAL WORKS OF THE EXISTING METAL DOME
PAINT REMOVAL WORKS AT THE WALL OF RUANG LIMPAH
LIME PLASTERS WERE REMOVED AT 1200MM HEIGHT FOR DAMPNESS TREATMENT
PROCESS OF STRENGTH TEST AT THE DOME USING REBOUND HAMMER
THE NEW METAL ROOF STRUCTURE AT RUANG LIMPAH
THE WORKER PREPARED A LIME PLASTER MOCK-UP ON THE INTERNAL WALL
PAINT COLOUR SCHEME STUDY ON THE INTERIOR WALL OF THE MASJID
THE INSTALLATION OF NEW ROOF TILES AT THE MAIN PRAYER HALL’S ROOF
During
Conservation
INSTALLATION OF A TEMPORARY ROOF ABOVE THE MAIN PRAYER HALL
REPAIR WORKS OF THE ORIGINAL CONCRETE DOME
PLASTER REMOVAL WORKS FOR DAMPNESS TREATMENT
PAINT REMOVAL USING THE SODA BLASTING METHOD
INSTALLATION OF NEW PLASTER CEILING AT THE MAIN PRAYER HALL WITH THE ORIGINAL TIMBER MEDALLION AND CARVINGS
PAINT REMOVAL AT THE OUTER DOME OF THE MASJID
THE COMPLETED LIME PLASTER MOCK-UP
THE CONSERVATION WORKS AT THE MASJID’S MINARET
THE CRACK REPAIRS ON THE ARCHES

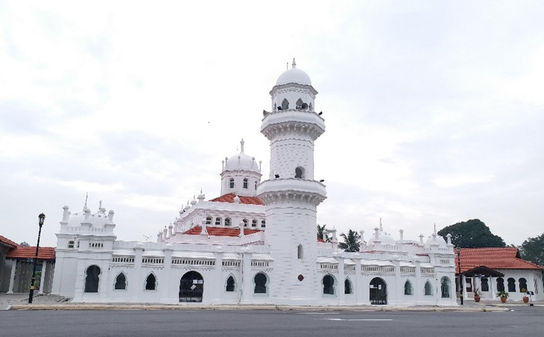

THE FRONT FAÇADE OF MASJID SULTAN ALA’EDDIN AFTER CONSERVATION WORKS IN 2018
THE MASJID WAS PAINTED WHITE AS THE ORIGINAL
THE INTERIOR OF THE RUANG LIMPAH AFTER CONSERVATION
THE NEW METAL ROOF FOR THE RUANG LIMPAH
After
Conservation
17th April
2018
THE FRONT FAÇADE OF MASJID SULTAN ALA’EDDIN AFTER CONSERVATION WORKS IN 2018
THE INTERIOR OF THE MAIN PRAYER HALL AFTER CONSERVATION
THE CONDITION OF DOME AND ROOF OF THE MAIN PRAYER HALL AFTER CONSERVATION
